Introduction

In the realm of machining and metalworking, the choice of grinding wheel plays a pivotal role in determining the efficiency, precision, and quality of the finished work. PEIPING Precision Enterprise Co., Ltd., a leader in the manufacturing of tool and cutter grinding machines, offers a comprehensive overview of the various types of grinding wheels available—Electroplated, Resinoid, Ceramic, and General Type —and their respective applications and benefits. This guide aims to assist our customers, who rely on our high-quality machinery, in selecting the perfect grinding wheel for their needs.

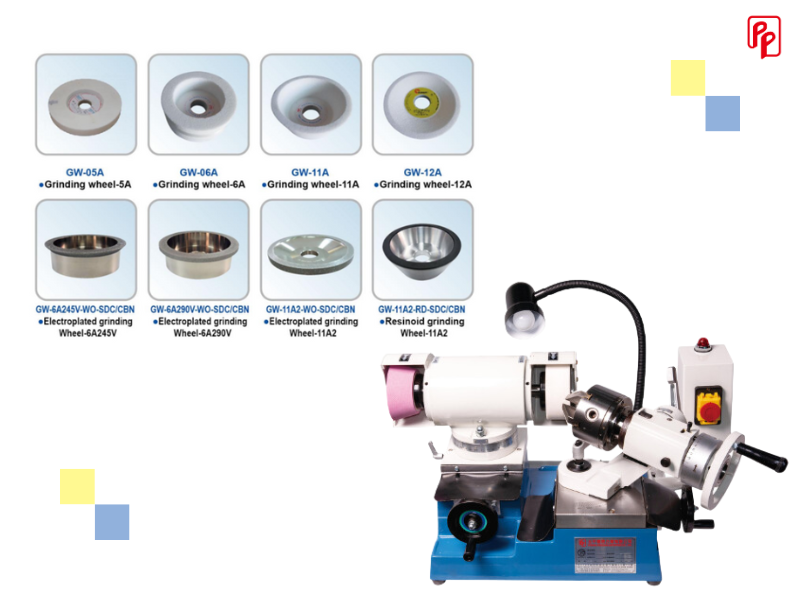

Types of Grinding Wheels

Grinding wheels, made from abrasive compounds, are used for various machining processes including grinding, cutting, and polishing. The four main types are:

 Electroplated Wheels: These wheels feature abrasives bonded to the surface with a nickel coating. Ideal for precision applications, they are known for their ability to hold form and offer a high degree of hardness and wear resistance.
 Resinoid Wheels: Constructed with a resin bond that holds the abrasive grains, these wheels offer flexibility and are used for a wide range of applications, including grinding hard-to-reach areas and complex shapes.
 Ceramic Wheels: These wheels are made with ceramic bonds and are renowned for their durability and ability to retain their shape. They are typically used for PCD, PCBN, diamond, etc. superhard material tools and cutters.
 General (Conventional) Wheels: Made from a vitrified or bonded abrasive, these wheels are the most common and are used for general grinding tasks.

Comparing the Types

 Material Composition: Electroplated wheels have a single layer of abrasive bonded by electroplating, while resinoid wheels use a synthetic resin to bond the abrasive grains. Ceramic wheels utilize a ceramic bond that offers high durability, and standard wheels typically use a vitrified bond.
 Durability and Longevity: Ceramic and electroplated wheels are known for their durability and longevity. Resinoid wheels offer a good balance of durability and flexibility, whereas standard wheels provide adequate performance for general use.
 Application Specificity: Ceramic wheels are preferred for grinding diamond-like materials (PCD, PCBN, CVD Diamond, Monocrystal), making them suitable for high-speed and high-precision tasks. Resinoid and electroplated wheels are ideal for materials like tungsten carbide (SDC) and high-speed steel (CBN), offering precision and minimal heat generation. Standard wheels are versatile and used for general steel and high-speed steel materials.

Application Insights

 Ceramic Grinding Wheels: These wheels are best suited for materials that require high-precision grinding, such as PCD, PCBN, CVD Diamond, and Monocrystal. Their durability and ability to maintain shape make them ideal for complex and high-speed grinding tasks.
 Resin and Electroplated Grinding Wheels: These wheels are tailored for grinding tungsten carbide (SDC) and high-speed steel (CBN) materials. Their bonding methods provide the necessary precision and heat resistance needed for these materials.
 Standard Grinding Wheels: The go-to choice for general steel and high-speed steel, these wheels offer reliability and efficiency for everyday grinding tasks.

Choosing the Right Wheel

Selecting the appropriate grinding wheel involves considering the material to be ground, the precision required, and the specific grinding machine in use. PEIPING Precision’s extensive range of grinding machines is designed to accommodate a wide variety of grinding wheels, ensuring that our customers can achieve the desired surface finish and dimensional accuracy for their machining tasks.

Step 1: Identify the Material to be Ground

 Material Hardness: Harder materials require a wheel with a finer grit and a softer grade to allow the abrasive particles to self-sharpen. Softer materials can be ground with a coarser grit and harder grade.
 Material Type: Different materials react differently to various types of grinding wheels. For instance, non-ferrous metals might require non-metallic grinding wheels.

Step 2: Determine the Grinding Operation

 Surface Grinding vs. Cylindrical Grinding: The type of grinding operation will influence the wheel selection. Surface grinding generally requires a wheel with a finer grit size and a harder grade than cylindrical grinding.
 Precision Required: High-precision grinding tasks may need wheels with a finer grit to achieve a smoother finish.

Step 3: Choose the Grinding Wheel Specifications

 Grit Size: Coarser grit for rapid material removal, finer grit for a smoother finish.
 Grade (Hardness): The bond strength of the grinding wheel; harder wheels for softer materials and vice versa.
 Type of Abrasives: Silicon carbide is suitable for non-ferrous metals, while aluminum oxide is better for ferrous alloys.
 Wheel Shape: The shape of the wheel should match the grinding operation, e.g., flat wheels for surface grinding and cup or dish wheels for tool and cutter grinding.

Step 4: Consider the Grinding Machine Compatibility

 Wheel Size and Type: Ensure the wheel fits the spindle speed and the size capacity of your PEIPING grinding machine.
 Power Requirements: Heavier operations require wheels that can withstand higher forces, matching the power output of the machine.

Step 5: Evaluate the Bond Type

 Resin Bonds: Offer smooth grinding action for precision work on materials like carbide.
 Vitrified Bonds: Provide a controlled wear rate ideal for precision grinding of a wide range of materials.
 Electroplated Bonds: Excellent for specialized applications requiring sharp cutting edges and for materials like PCD and PCBN.
 Ceramic Bonds: Suitable for high-speed steel and allow for aggressive material removal with less wear.

Step 6: Safety and Quality Considerations

 Safety Standards: Ensure the wheel meets or exceeds industry safety standards.
 Manufacturer’s Reputation: Trust in the quality and reliability of the grinding wheel, considering the manufacturer's reputation in the industry.

Step 7: Consult with Experts

 PEIPING Precision Advice: Leverage the expertise of PEIPING Precision representatives who can provide insights based on vast experience with various materials and grinding operations.

Step 8: Testing and Evaluation

 Trial Runs: Before committing to a large purchase, perform trial runs with the grinding wheel to ensure it meets your requirements for finish, precision, and efficiency.

Conclusion

PEIPING Precision Enterprise Co., Ltd. is committed to providing our customers with not only the best grinding machines but also the knowledge to select the right tools and accessories for their needs. Understanding the differences and applications of various grinding wheels is essential in achieving optimal results in metalworking and machining. By choosing the correct grinding wheel, our customers can enhance their operational efficiency, precision, and ultimately, the quality of their finished products.

Contact Us

For more information on our grinding machines and to find the perfect grinding wheel for your applications, please contact PEIPING Precision Enterprise Co., Ltd. Our experts are ready to assist you in selecting the right equipment and accessories to meet your specific needs.
